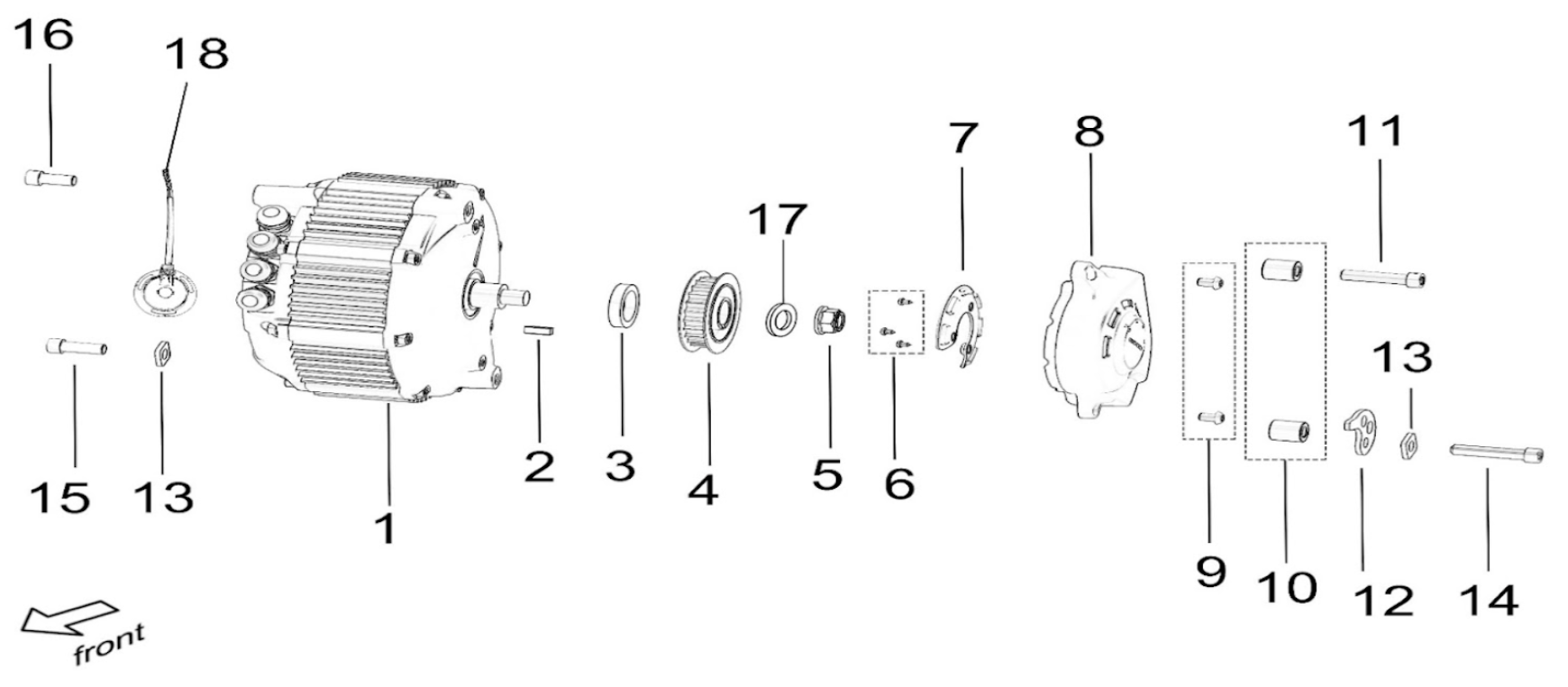

L1E Motor System

Category:

  1. Motor Assy. (3KW) | Part number: 11100-YQ2A-0201
  2. Woodruff Key (5516mm) | Part number: B6-003-05-016
  3. Motor Shaft Seal | Part number: B7-001-25-35-07
  4. Primary pulley | Part number: 13201-YQ2A-0300
  5. Nut (M12*1.25) | Part number: B2-007-12-F2
  6. Screw (PB3.5*6) | Part number: FB03-005-006-F2
  7. Primary pulley inner plate | Part number: 32332-YQ2A-0000
  8. Primary pulley outer cover | Part number: 32331-YQ2A-0000
  9. Bolt (M6*10) | Part number: B3-002-06-010-F0
  10. Motor support Bushing | Part number: 11216-YQ2A-0000
  11. Screw (M8*40) | Part number: B3-001-08-040-F0
  12. Motor Position Adjuster | Part number: 11171-YQ2A-0000
  13. Motor Position Adjuster Fix Plate | Part number: 11172-YQ2A-0000
  14. Screw (M8*45) | Part number: B3-001-08-045-F0
  15. Screw (M8*20) | Part number: B3-001-08-020-F0
  16. Screw (M8*25) | Part number: B3-001-08-025-F0
  17. Primary pulley Washer (Φ24Φ101.6-3) | Part number: FB05-002-23-12-1-F3
  18. Hall Sensor | Part number: 21152-YQ2A-0000
