L1E Side Stand Kit & Foot Pedals Kit

Category:

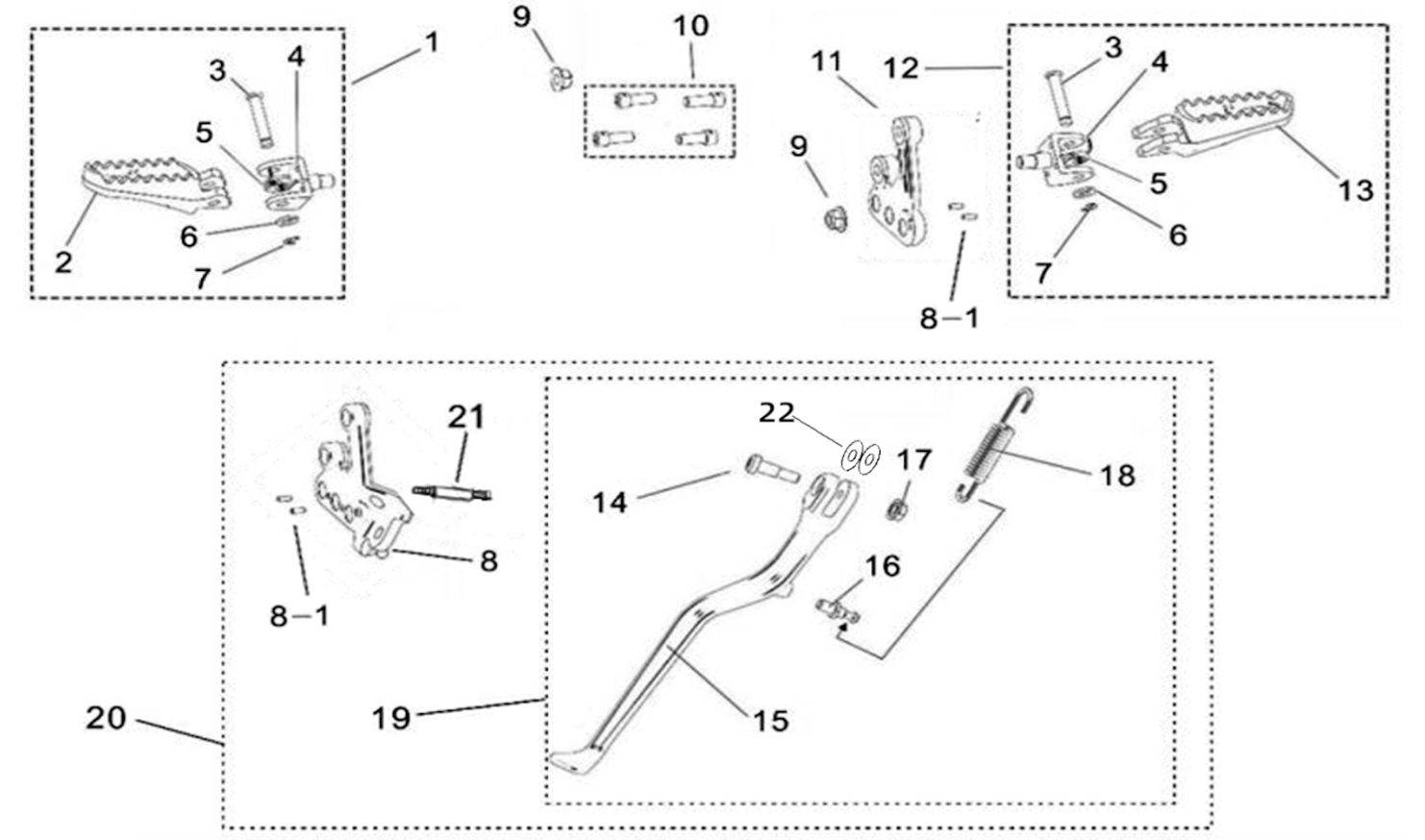

  1. L Foot Pegs Assy. (Part number: 42100-YQ2A-0000)
  2. L Foot Pegs (Part number: 42111-YQ2A-0000)
  3. Foot Pegs Pin (Part number: 42116-YQ2A-0000)
  4. Foot Pegs Bracket (Part number: 42122-YQ2A-0001)
  5. Foot Pegs Spring (Part number: 42115-YQ2A-0000)
  6. Washer (Φ8) (Part number: B4-001-08-F2)
  7. Foot Peg Clip Spring Reed (Inner Dia. Φ6） (Part number: B4-007-06-F1)
  8. L Foot Pegs Bracket (Part number: 42112-YQ2A-0000)
    • 8.1: Dowel Pin (Part number: B4-008-04-012-F0)
  9. Nut (M10*1.25) (Part number: B2-007-10-F2)
  10. Screw (M8*25) (Part number: B3-001-08-025-F0)
  11. R Foot Pegs Bracket (Part number: 42212-YQ2A-0000)
  12. R Foot Pegs Assy. (Part number: 42200-YQ2A-0000)
  13. R Foot Pegs (Part number: 42211-YQ2A-0000)
  14. Screw (M8*30) (Part number: 41559-YQ2A-0000)
  15. Side Stand (Part number: 41550-YQ2A-0000)
  16. Side Stand Spring Pin B (Part number: 41555-YQ2A-0000)
  17. Nut (M8) (Part number: B2-006-08-F2)
  18. Side Stand Spring (Part number: 41556-YQ2A-0000)
  19. Side Stand Assy. (Part number: 41550-YQ2A-Z1)
  20. Side Stand Assy.+L Foot Peg Mounting Bracket (Part number: 41550-YQ2A-Z2)
  21. Side Stand Spring Pin A (Part number: 41554-YQ2A-0000)
  22. Washer (Φ24*Φ10-0.5) (Part number: FB05-004-10-F0)
