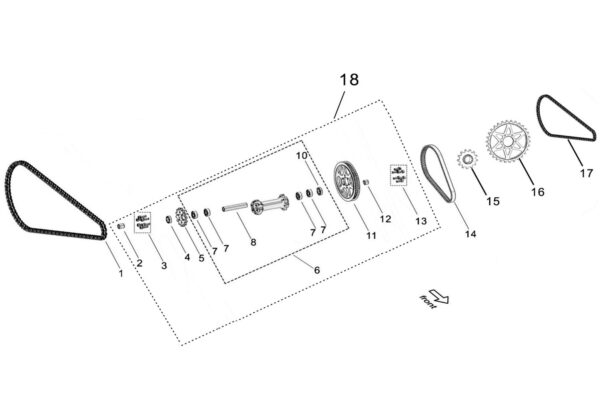

LBX Drive System

Category:

  1. O-Ring Chain (420-106 Links) | Part number: 13114-YQ2A-0600
    • Chain (420-106 Links) | Part number: 13114-YQ2A-0000
    • O-Ring Chain (420-112 links) | Part number: 13114-YQ2A-0700
  2. Mid. Shaft R Bushing | Part number: 61234-YQ2A-0001
  3. Screw (M6*25) | Part number: B3-003-06-025-F0
  4. Mid. Shaft R Oil Seal (Φ15-Φ24-7) | Part number: B7-001-15-24-07
  5. Secondary Drive Front Sprocket (14T) | Part number: 13105-YQ2A-0000
  6. Mid. Shaft Assy. | Part number: 61280-YQ2A-0001
  7. Mid. Shaft Bearing | Part number: Z-6000-2Z-26-10-08
  8. Mid. Shaft Inner Bushing | Part number: 61282-YQ2A-0000
  10. Mid. Shaft L Oil Seal (Φ15-Φ26-6) | Part number: B7-001-15-26-6
  11. Primary Drive Rear Pulley | Part number: 13202-YQ2A-0200
  12. Mid. Shaft L Bushing | Part number: 61233-YQ2A-0001
  13. Screw (M6*16) | Part number: B3-001-06-016-F0
  14. Primary Belt(GATES) | Part number: 13111-YQ2A-0400
  15. Primary Chain Drive Front Sprocket (13T) | Part number: 13211-YQ2A-0000
  16. Primary Chain Drive Rear Sprocket (30T) | Part number: 13212-YQ2A-0000
  17. Primary Chain (420-42links) | Part number: 13117-YQ2A-0000
  18. Mid. Shaft Assy. + Secondary Chain Drive Front Sprocket (14T)+ Primary Drive Rear Pulley | Part number: 61270-YQ2A-Z1
