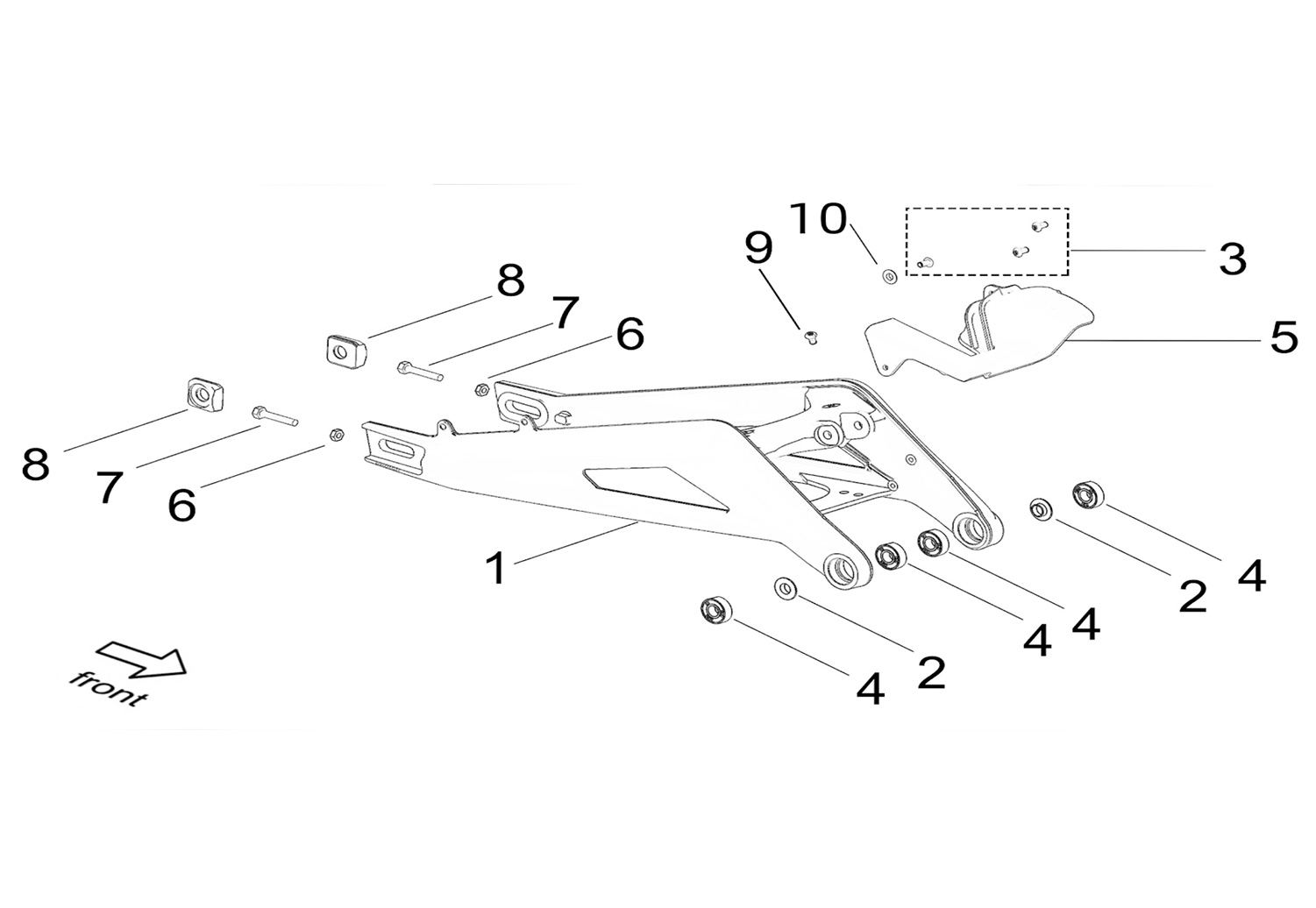

Light Bee X rear fork system diagram

LBX Rear Fork System

Category:

  1. Swingarm Assembly | Part number:
  2. Washer (Φ10*Φ15*Φ22-2) | Part number: FB05-005-10-15-22-2
  3. Screw (M5*10) | Part number: B3-002-05-010-F0
  4. Swingarm pivot bearing | Part number: Z-6000-2Z-26-10-08
  5. Mid. Shaft Guard (Plastic) | Part number: 32120-YQ2A-0000
  6. Nut (M6) | Part number: B2-001-06-F2
  7. Bolt (M6*35) | Part number: B1-004-06-035-F0
  8. Tensioner | Part number: 61210-YQ2A-0000
  9. Screw (M5*10) | Part number: B3-002-05-010-F0
    1. Midshaft washer | Part number: B4-001-06-F2
