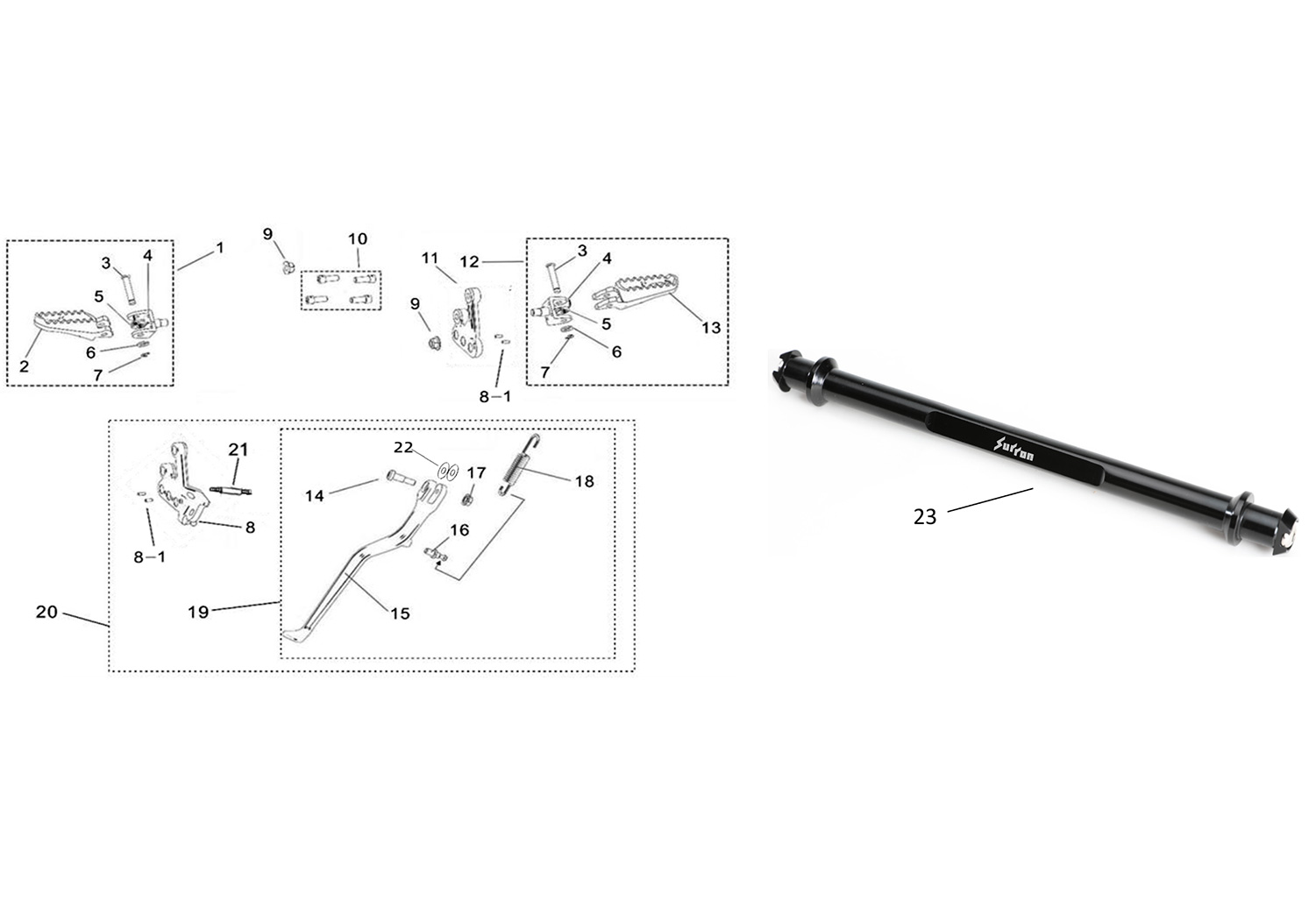

image of site stand kit diagram

LBX Side Stand Kit & Foot Pedals Kit

Category:

  1. L Foot Pegs Assy. | Part number: 42100-YQ2A-0000
  2. L Foot Pegs | Part number: 42111-YQ2A-0000
  3. Foot Pegs Pin | Part number: 42116-YQ2A-0000
  4. Foot Pegs Bracket | Part number: 42122-YQ2A-0001
  5. Foot Pegs Spring | Part number: 42115-YQ2A-0000
  6. Washer (Φ8) | Part number: B4-001-08-F2
  7. Foot Peg Clip Spring Reed (Inner Dia. Φ6）| Part number: B4-007-06-F1
  8. L Foot Pegs Bracket | Part number: 42112-YQ2A-0000
  9. Dowel Pin | Part number: B4-008-04-012-F0
  10. Nut (M10*1.25) | Part number: B2-006-10-F2
  11. Screw (M8*25) | Part number: B3-001-08-25-F0
  12. R Foot Pegs Bracket | Part number: 42212-YQ2A-0000
  13. R Foot Pegs Assy. | Part number: 42200-YQ2A-0000
  14. R Foot Pegs | Part number: 42211-YQ2A-0000
  15. Screw (M8*30) | Part number: 41559-YQ2A-0000
  16. Side Stand | Part number: 41550-YQ2A-0000
  17. Side Stand Spring Pin B | Part number: 41555-YQ2A-0000
  18. Nut (M8) | Part number: B2-006-08-F2
  19. Side Stand Spring | Part number: 41556-YQ2A-0000
  20. Side Stand Assy. | Part number: 41550-YQ2A-Z1
  21. Side Stand Assy.+L Foot Peg Mounting Bracket | Part number: 41550-YQ2A-Z2
  22. Side Stand Spring Pin A | Part number: 41554-YQ2A-0000
