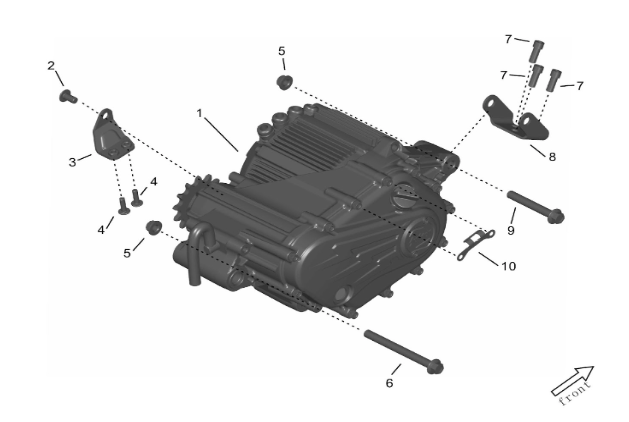

SB Transmission assembly

Category:

  1. Encoder Motor Reduction Gearbox 13T CPL. | Part number: 11000-YS1A-02B0
  2. Screw FB03001 M8x20 | Part number: FB03-001-08-020-F0
  3. Motor INST. Bracket LEFT | Part number: 11211-YS1A-0100
  4. Screw FB03001 M6x20 | Part number: FB03-001-06-020-F0
  5. Nut B2003 M10 | Part number: B2-003-10-F2
  6. Motor INST. Axle REAR | Part number: 11123-YS1A-0000
  7. Screw B3001 M8x20 | Part number: B3-001-08-020-F0
  8. Motor INST. Bracket Front | Part number: 11213-YS1A-0000
  9. Motor INST. Axle Front | Part number: 11121-YS1A-0000
  10. REAR Brake Housing Bracket | Part number: 52177-YS1A-0000
