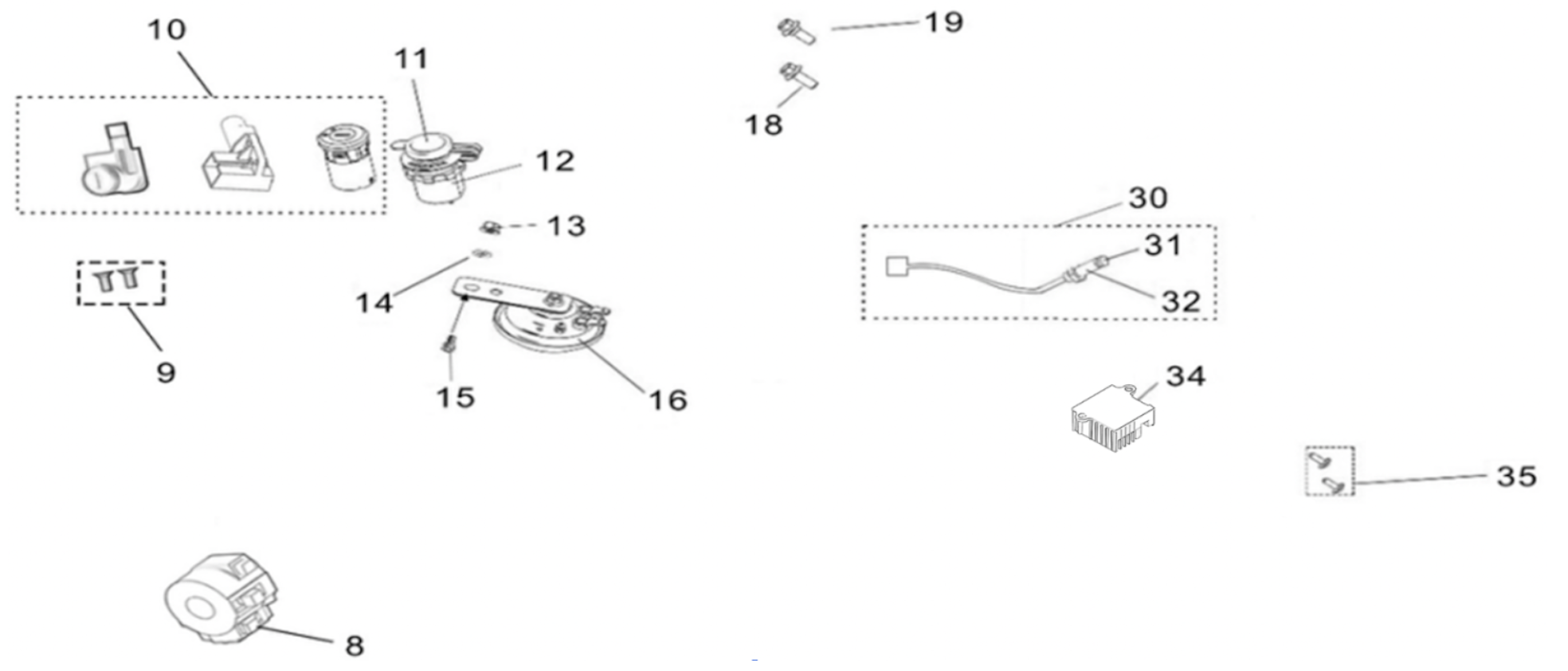

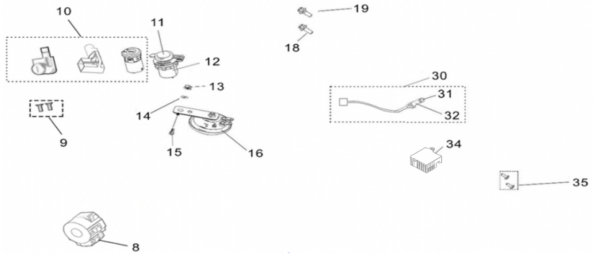

L1E Horn System

Category:

8: LBL1E Sport/Eco Switch Assy. | Part number: 23200-YQ2B-0000

    • LBL1J Sport/Eco Switch Assy. (with hazard warning signal) | Part number: 23200-YQ2B-01009:

9: Screw (M5*16) | Part number: B3-003-05-016-F0

10: Key Switch Set(3P) | Part number: 27000-YQ2B-0100

11: USB Cap | Part number: 24601-YQ2A-0000

12: USB Port | Part number: 24600-YQ2A-0000

13: Nut (M6) | Part number: B2-006-06-F2

14: Washer (Φ6) | Part number: B4-001-06-F2

15: Screw (M6*16) | Part number: B3-001-06-016-F0

16: Horn | Part number: 29310-NM1A-0000

18: Screw A (M6*16) | Part number: B1-008-06-020-F2

19: Screw B (M6*16) | Part number: FB01-003-06-016-F2

30: Side Stand Switch Assy. | Part number: 23400-YQ2A-0000

34: DC Converter Assy. | Part number: 21300-YQ2A-0000

35: Screw (M4*13) | Part number: FB03-003-04-013-F3
