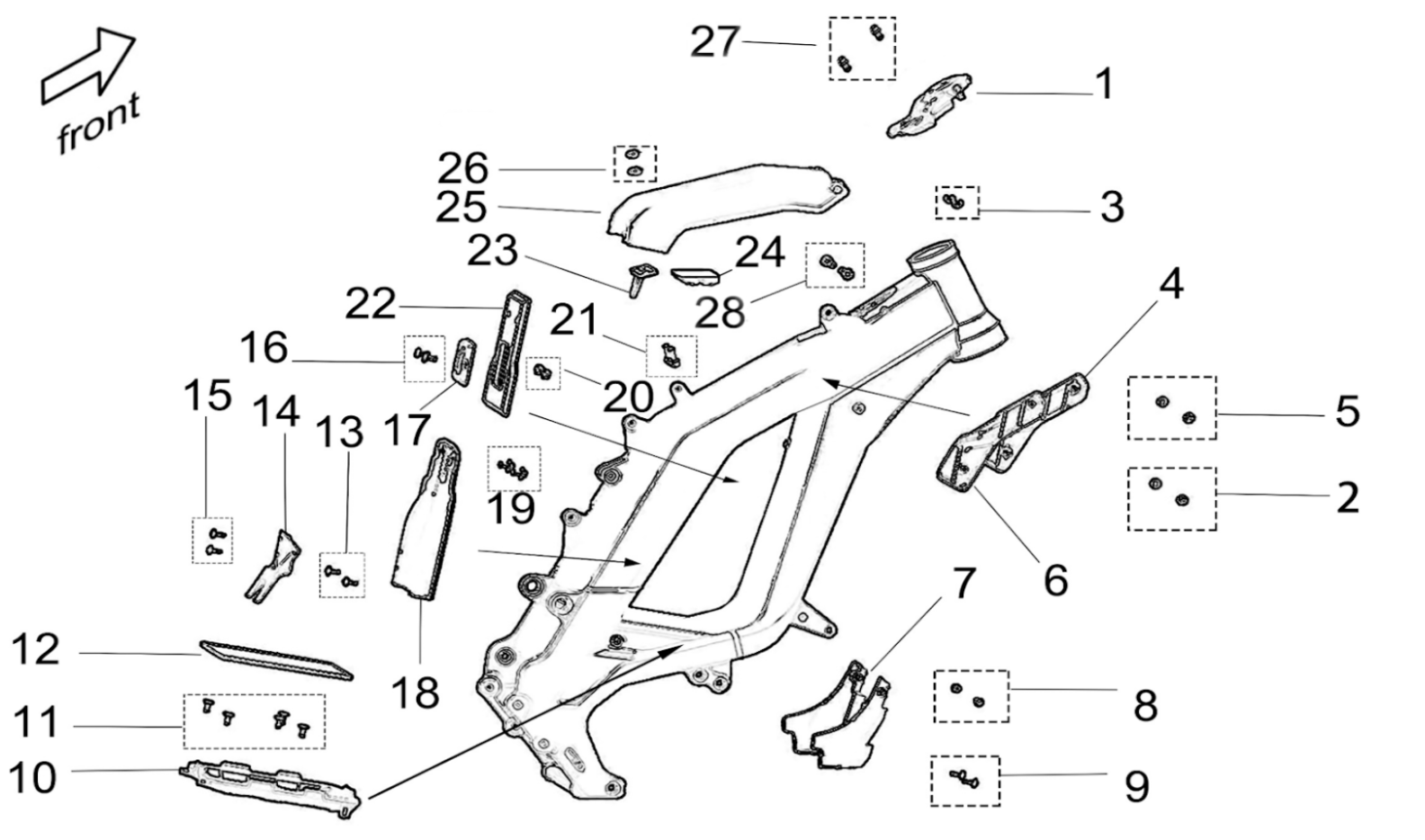

L1E Surrounding Parts of Frame 1

Category:

  1. Key switch holder | Part number: 32340-YQ2A-0000
  2. Screw (M5*10) | Part number: B3-003-05-010-F0
  3. E-Clip (Inner Dia. Φ5) | Part number: B4-007-05-F1
  4. Battery L Positioning Block | Part number: 32356-YQ2A-0000
  5. Screw (M5*10) | Part number: B3-003-05-010-F0
  6. Battery R Positioning Block | Part number: 32357-YQ2A-0000
  7. Controller Mud Guard | Part number: 32361-YQ2A-0000
  8. Screw A (M6*10) | Part number: B3-002-06-010-F0
  9. Screw B (M4*13) | Part number: FB03-003-04-013-F3
  10. Battery Bottom Positioning Block | Part number: 32358-YQ2A-0000
  11. Screw (M5*12) | Part number: B3-003-05-012-F0
  12. Battery bottom Buffer | Part number: 26343-YQ2A-0000
  13. Screw (M4*13) | Part number: FB03-003-04-013-F3
  14. Belt mudguard | Part number: 32365-YQ2A-0000
  15. Screw (M4*13) | Part number: FB03-003-04-013-F3
  16. Screw (M5*12) | Part number: B3-003-05-012-F0
  17. Battery Front Positioning Block | Part number: 32353-YQ2A-0000
  18. Battery rear mud plate | Part number: 32355-YQ2A-0000
  19. Screw (M6*12) | Part number: FB03-001-06-012-F0
  20. Nut (M5) | Part number: B2-012-05-F2
  21. Screw (M6*12) | Part number: B3-002-06-012-F0
  22. Battery front Buffer | Part number: 26341-YQ2A-0000
  23. Battery cap Lock Hook | Part number: 26290-YQ2A-0000
  24. Battery cap rubber bumper | Part number: 32233-YQ2A-0000
  25. Battery cap | Part number: 32231-YQ2A-0000
  26. Nut (M6) | Part number: B2-001-06-F2
  27. Screw (M6*12) | Part number: B3-002-06-012-F0
  28. Battery cap pivot pin | Part number: 41762-YQ2A-0000
