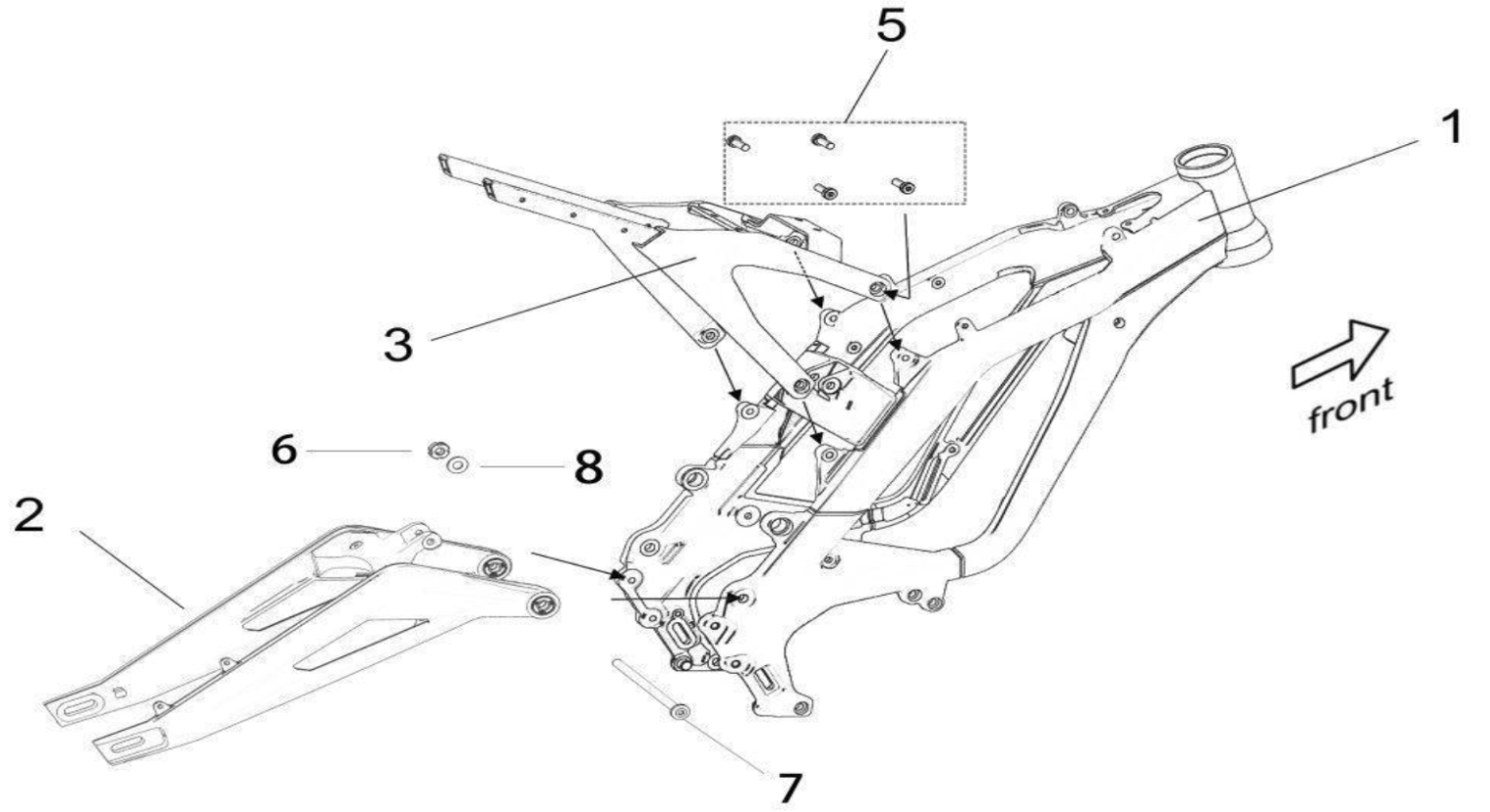

LBS Frame & Subframe

Category:

  1. Frame Assy. (Silver-White) | Part number: 41100-YQ1A-0000
    • Frame Assy. (Black) | Part number: 41100-YQ1A-0000-Y4
    • Frame Assy. (Blue) | Part number: 41100-YQ1A-0000-Y11
  2. Swingarm Assy.(Without Painting) | Part number: 61000-YQ2A-0000
    • Swingarm Assy.（Black） | Part number: 61000-YQ2A-0000-Y4
    • Swingarm Assy.（Blue） | Part number: 61000-YQ2A-0000-Y11
  3. Subframe Assy. | Part number: 41520-YQ2A-0000
  5. Screw (M8*20) | Part number: B1-009-08-020-F0
  6. Nut (M10*1.0) | Part number: B2-013-10-F0
  7. Swingarm pivot shaft（40Cr-Φ10198-M101.0） | Part number: 61260-YQ2A-0000
  8. Washer (Φ10-Φ20-2) | Part number: B4-001-10-F2
