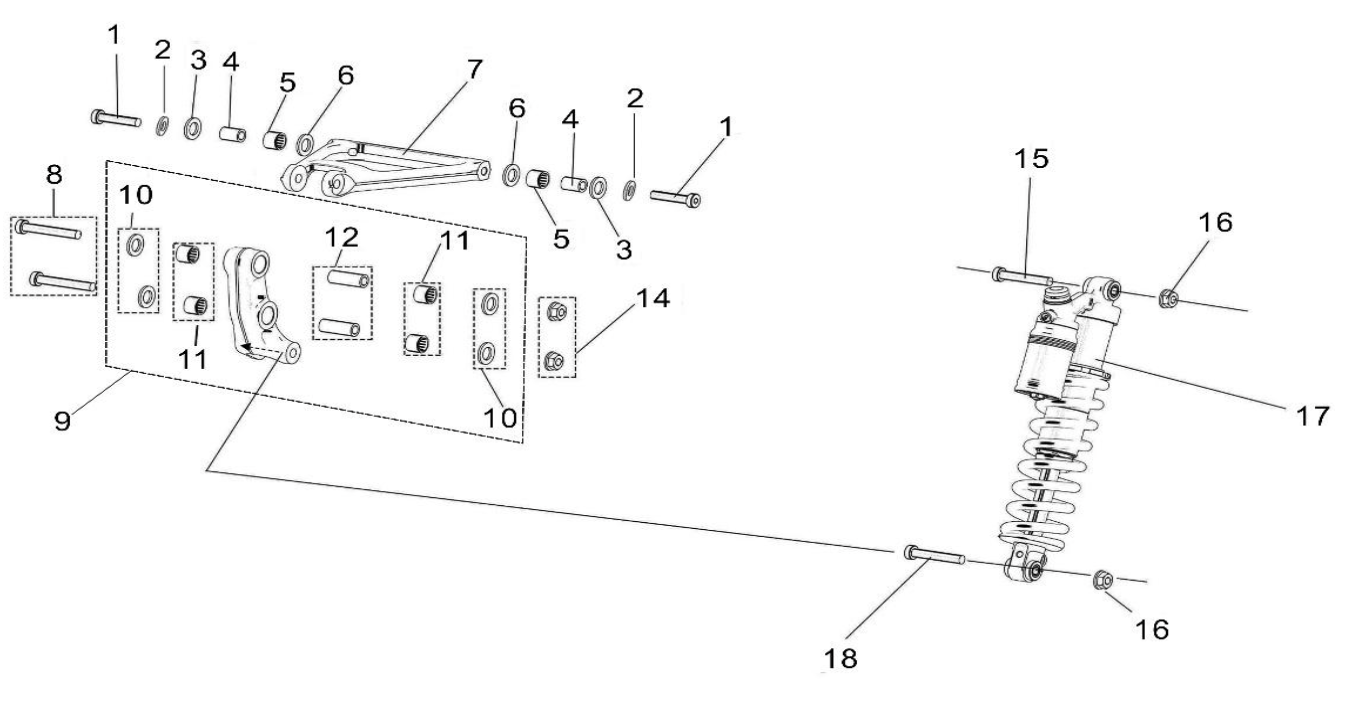

LBS Linkage Arm System

Category:

  1. Bolt (M8*35) | Part number: B3-001-08-035-F7
  2. Washer (Φ8) | Part number: B4-001-08-F2
  3. Nylon Washer (Φ12-Φ20-2) | Part number: 55163-YQ2A-0000
  4. Connector Bushing | Part number: 55162-YQ2A-0000
  5. Rear Shock Linkage Connector Bearing | Part number: Z-HK1212-16-12-12
  6. Nylon Washer (Φ12-Φ20-2) | Part number: 55163-YQ2A-0000
  7. Rear Shock Linkage Connector | Part number: 55148-YQ2A-0000
  8. Linkage Arm Axle (Half-Thread L55-M8) | Part number: B3-001-08-055-F7
  9. Linkage Arm Assy. | Part number: 55140-YQ1A-0000
  10. Linkage Arm Oil Seal | Part number: B7-001-12-16-3
  11. Linkage Arm Roller Bearing | Part number: Z-HK1212-16-12-12
  12. Linkage Arm Bushing | Part number: 55142-YQ2A-0000
  13. Nut (M8) | Part number: B2-006-08-F2
  14. Screw (Half-Thread L50-M8) | Part number: B3-001-08-050-F7
  15. Nut (M8) | Part number: B2-006-08-F2
  16. Rear Shock Absorber 350lb (KKE) | Part number: 55110-YQ1A-0000
  17. Screw (Half-Thread L45-M8) | Part number: B3-001-08-045-F7
