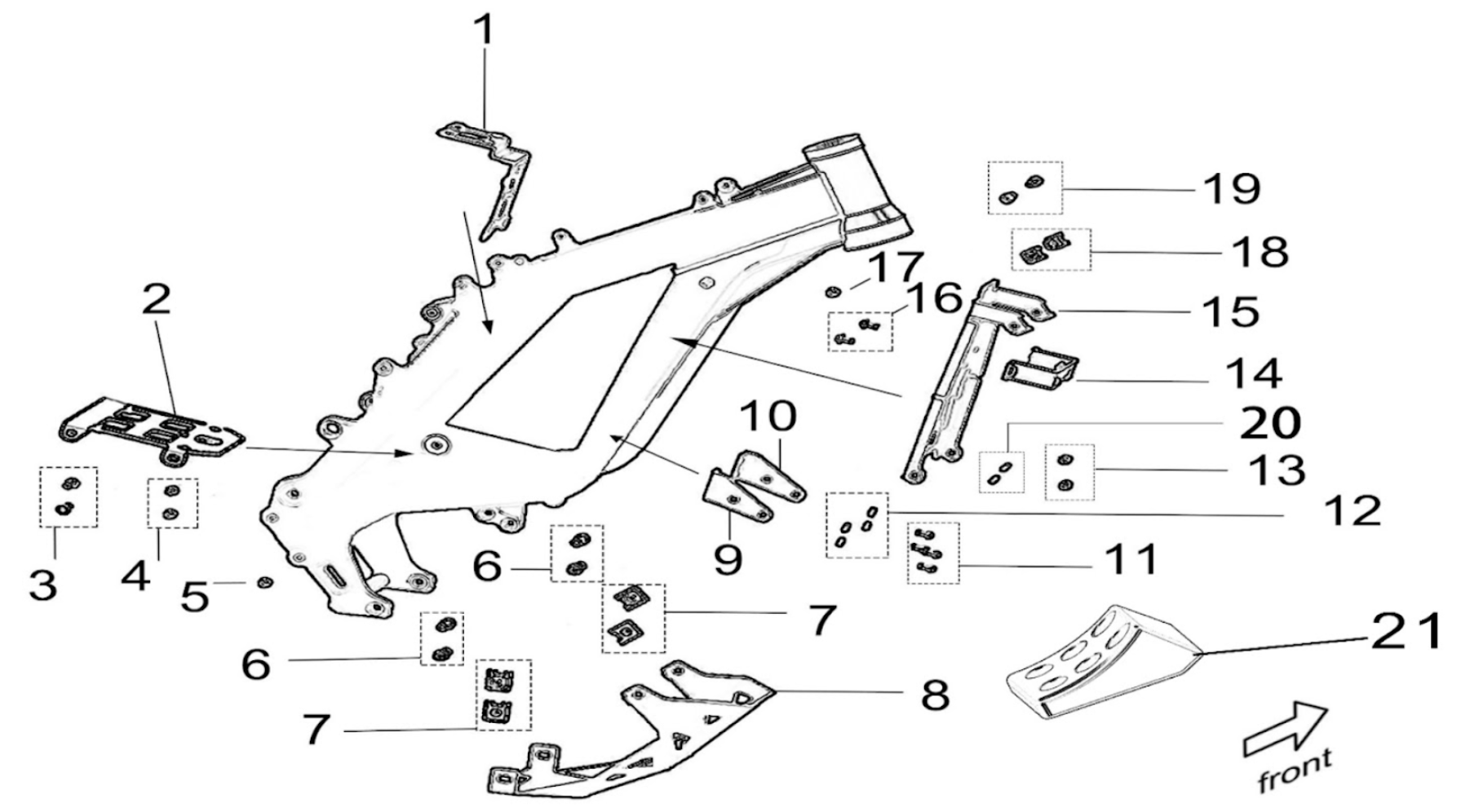

LBS Surrounding Parts of Frame 2

Category:

  1. Battery Rear Support Plate | Part number: 32354-YQ2A-0000
  2. Battery Bottom Support Plate | Part number: 41690-YQ2A-0000
  3. Screw A (M6*16) | Part number: FB03-001-06-016-F0
  4. Screw B (M6*10) | Part number: B3-001-06-010-F0
  5. Motor Position Adjuster Limitation Pin (M6*14) | Part number: B4-009-06-014-F0
  6. Screw (M8*20) | Part number: B1-009-08-020-F0
  7. Nut Clip (M8) | Part number: FB02-003-08-F2
  8. Skid plate | Part number: 41750-YQ2A-0000
  9. Controller Lower Right Bracket | Part number: 41740-YQ2A-0000
  10. Controller Lower Left Bracket | Part number: 41730-YQ2A-0000
  11. Screw (M6*10) | Part number: B3-002-06-010-F0
  12. Spring Washer (Φ6) | Part number: B4-002-06-F2
  13. Screw (M6*12) | Part number: B3-001-06-012-F0
  14. Controller Upper Bracket | Part number: 41710-YQ2A-0000
  15. Battery Front Plate | Part number: 41670-YQ2A-0000
  16. Screw (M6*12) | Part number: B3-002-06-012-F0
  17. Screw (M5*10) | Part number: B3-002-05-010-F0
  18. Clip Nut (M6) | Part number: FB02-001-06-F7
  19. Screw (M6*20) | Part number: B3-001-06-020-F0
  20. Spring Washer (Φ6) | Part number: B4-002-06-F2
  21. Motor protection Block | Part number: 41755-YQ2A-0000
