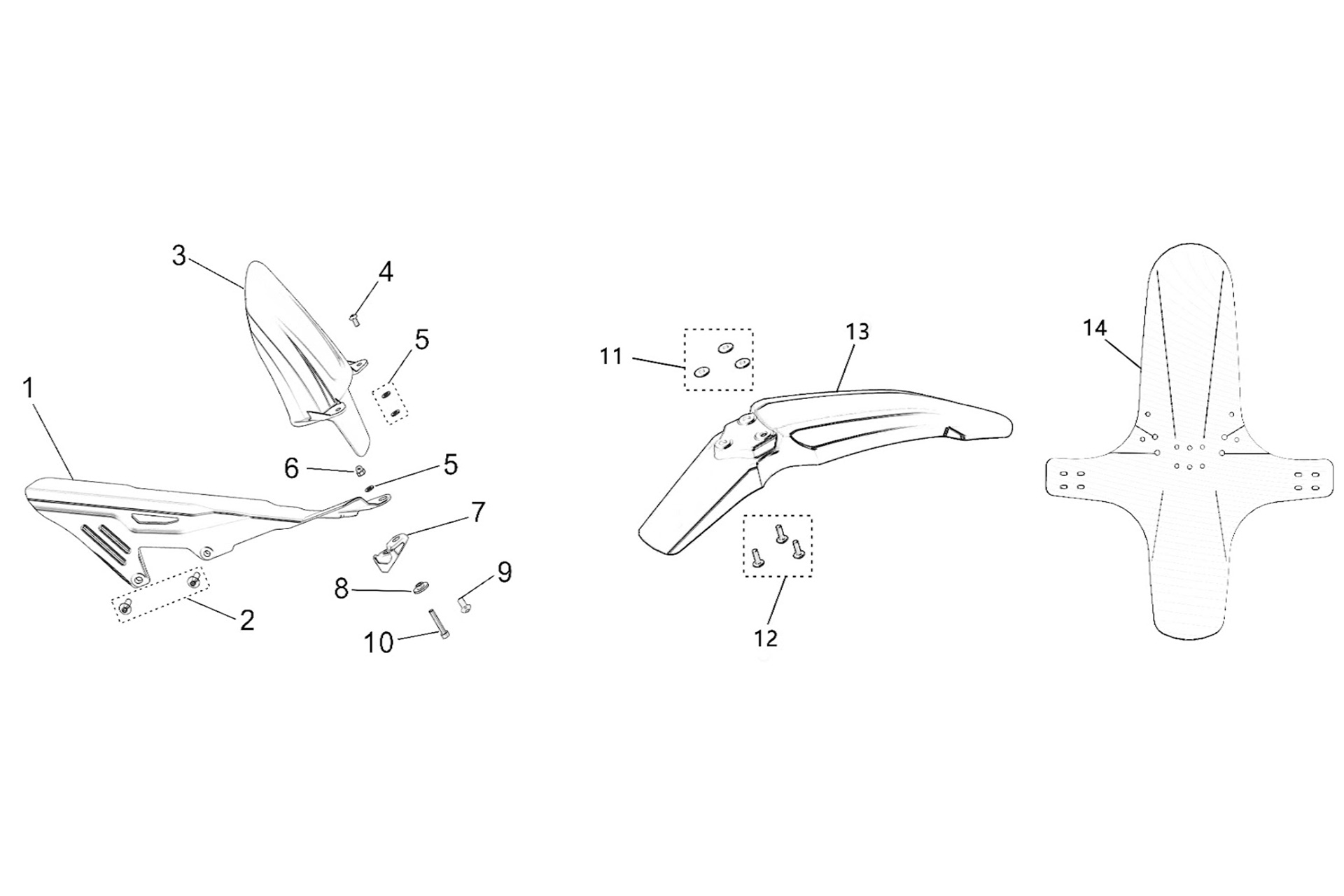

LBX fender kit diagram

LBX Fender Kit

Category:

  1. Chain Guide | Part number: 32223-YQ2A-0000
  2. Screw(M6*12) | Part number: FB03-001-06-012-F0
  3. Rear Tire Hugger | Part number: 31311-YQ1N-0000
  4. Screw (M5*10) | Part number: B3-002-05-010-F0
  5. Flat WasherΦ5 | Part number: B4-001-05-F2
  6. Cap Nut(M5*10) | Part number: B2-018-05-010-F0
  7. Swingarm protection Block | Part number: 61237-YQ2A-0000
  8. Flanged Bushing | Part number: 61238-YQ2A-0000
  9. Screw(M5*12) | Part number: B3-002-05-012-F0
  10. Screw(M5*30) | Part number: B3-001-05-030-F0
  11. Front Fender Bushing | Part number: 31218-YQ2B-0000
  12. Screw (M6*16） | Part number: FB03-001-06-016-F0
  13. Front Fender (KKE) | Part number: 31211-YQ2B-0000
  14. Front Fender | Part number: 31211-YQ2A-0100
