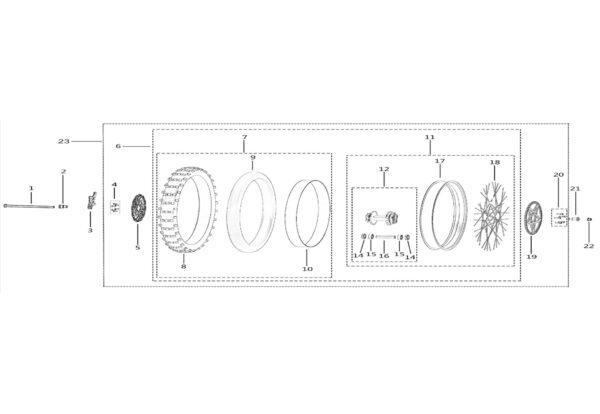

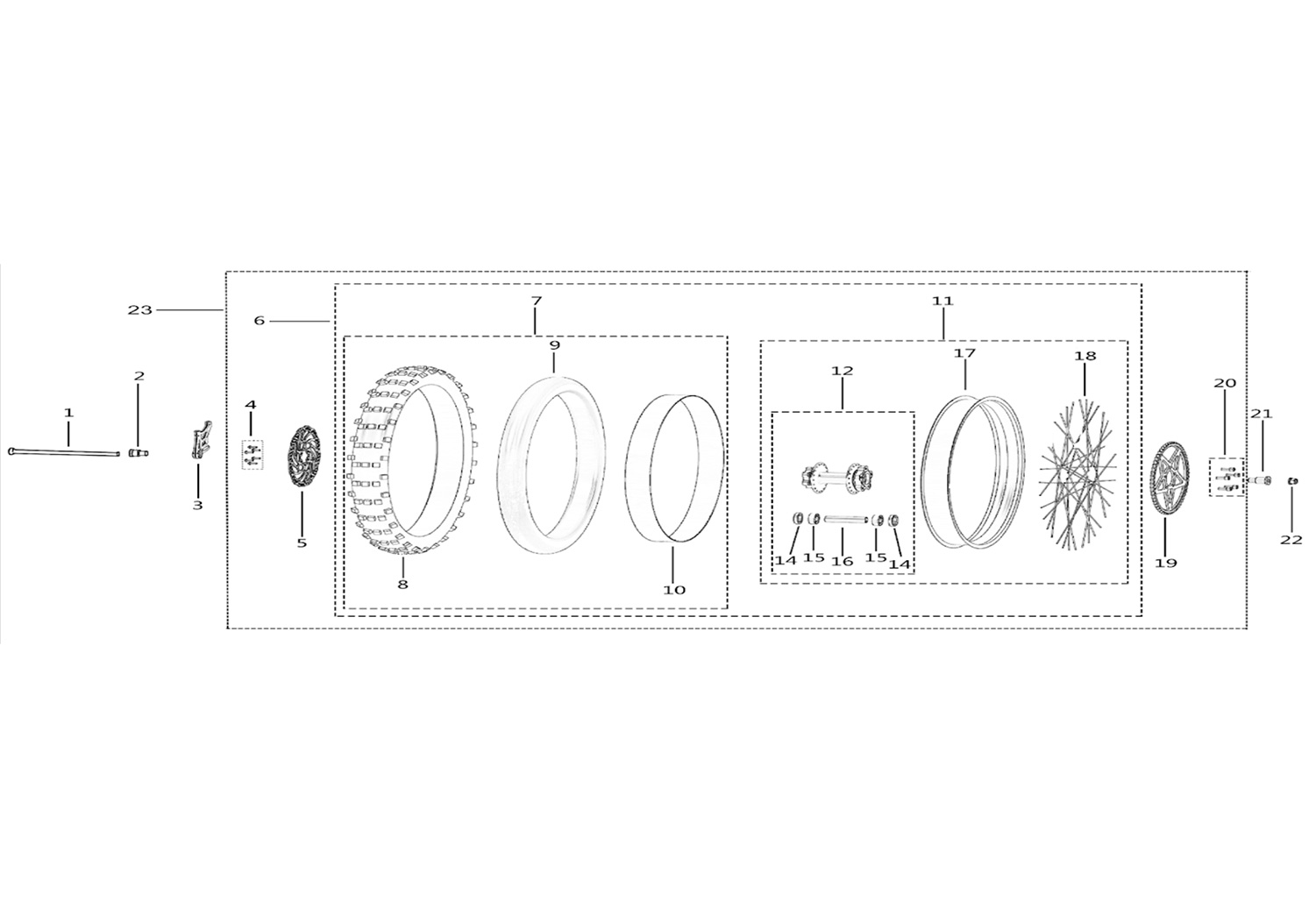

LBX Rear Wheel System

Category:

  1. LBX Rear Wheel axle | Part number: 51350-YQ2A-0000
  2. Rear Wheel Step Bushing Left | Part number: 51362-YQ2A-0000
  3. Rear Brake Clipper Bracket | Part number: 52280-YQ2A-0000
  4. Screw (M6*13) | Part number: FB03-006-06-013-F3
  5. Rear Brake Disc | Part number: 52271-YQ2A-0001
  6. Rear Wheel Off Road Assy
    1. Rear Wheel Off Road Assy. | Part number: 51300-YQ2A-0000
    2. Rear Wheel Off Road Assy. (E-Mark) | Part number: 51300-YQ2A-0200
  7. Tyre
    1. Off Road Tire Assy. | Part number: 51230-YQ2A-0000
    2. Off Road Tire Assy. (E-Mark-70/100-19-CM708) | Part number: 51230-YQ2A-0010
    3. All Terrain Tire Assy. 2.50-19 （E-Mark） | Part number: 51230-YQ2A-0301
  8. Tyre
    1. Off Road Tire | Part number: 51231-YQ2A-0000
    2. Off Road Tire (E-Mark-70/100-19-CM708) | Part number: 51231-YQ2A-0010
    3. All Terrain Tire (2.50-19 E-Mark) | Part number: 51231-YQ2A-0301
  9. Inner tube
    1. Inner Tube | Part number: 51232-YQ2A-0000
    2. Inner Tube(E-Mark-2.00/2.25-19) | Part number: 51232-YQ2A-0010
  10. Rim Band(19-20mm) | Part number: 51266-YQ2A-0000
  11. Rear Rim Assy. | Part number: 51370-YQ2A-0000
  12. Rear Wheel Hub Assy. | Part number: 51310-YQ2A-0000
  14. Rear Wheel Hub Oil Seal (Φ20-Φ37-7) | Part number: B7-001-20-37-7
  15. Rear Wheel Hub Bearing (Φ15Φ3511) | Part number: Z-6202-35-15-11
  16. Rear Wheel Hub Inner Bushing | Part number: 51363-YQ2A-0000
  17. Rear Rim | Part number: 51271-YQ2A-0100
  18. Spokes
    1. Rear Wheel Inside Spokes(212×8) | Part number: 51390-YQ2A-0100
    2. Rear Wheel Outside Spokes(212×8.6) | Part number: 51390-YQ2A-0200
  19. Sprocket
    1. Sprocket (48T) | Part number: 13204-YQ2A-0000
    2. Sprocket (58T) | Part number: 13204-YQ2A-0200
  20. Screw (M8*16) | Part number: B3-001-08-016-F0
  21. Rear Wheel Step Bushing Right | Part number: 51361-YQ2A-0000
  22. Nut (M12*1.25) | Part number: B2-007-12-F2
  23. Rear Wheel Assy
    1. Rear Wheel Assy + Rear Brake Disc + Sprocket（E-Mark） | Part number: 51300-YQ2B-Z
    2. Rear Wheel Assy + Rear Brake Disc + Sprocket | Part number: 51300-YQ2A-Z1
