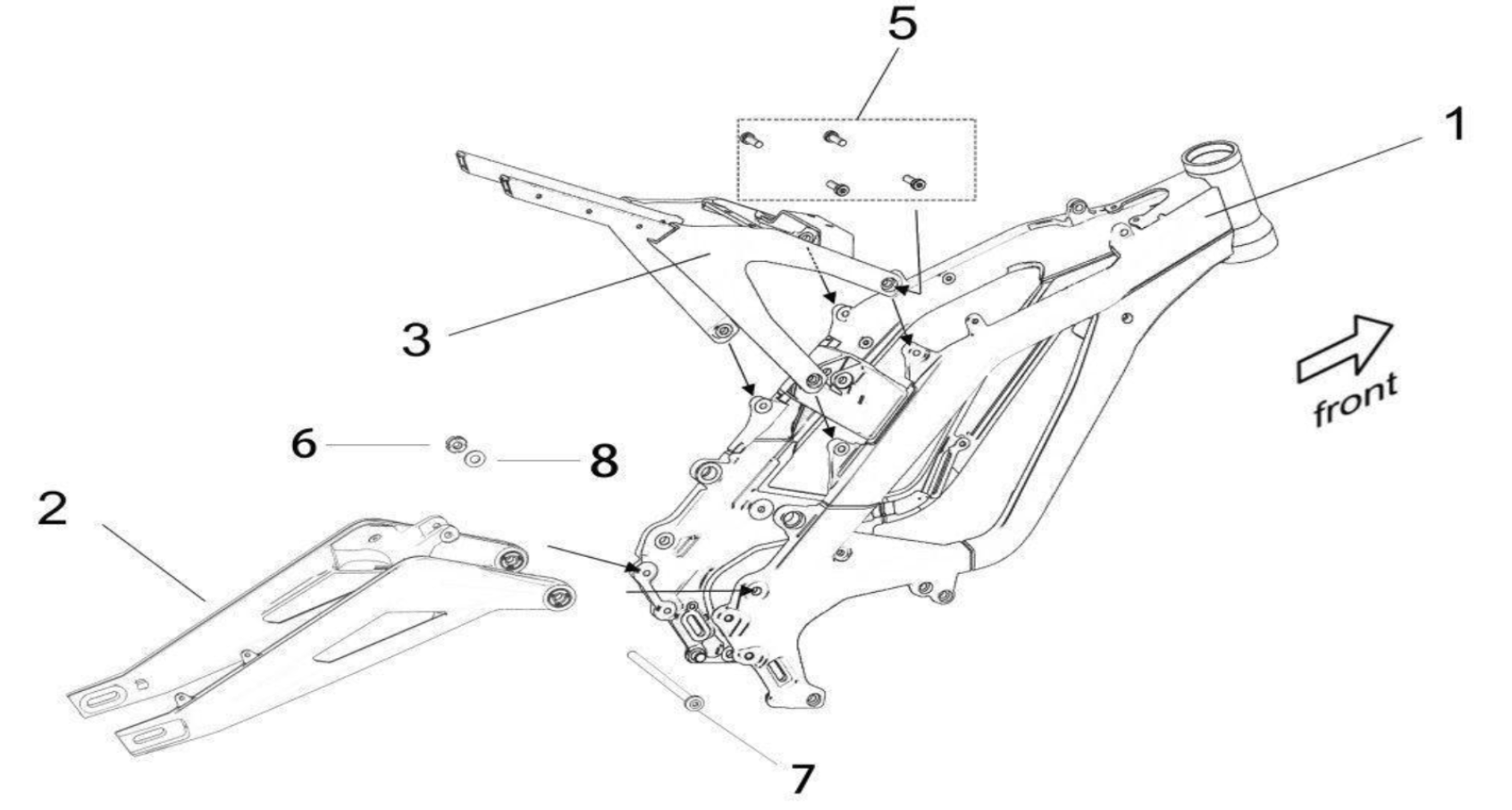

L1E Frame System & Seat Frame System

Category:

  1. Frame Assy. (Without Painting) | Part number: 41100-YQ2B-0000
    • Frame Assy. (Silver-White) | Part number: 41100-YQ2B-0000-Y2
    • Frame Assy. (Black) | Part number: 41100-YQ2B-0000-Y4
    • Frame Assy. (Blue) | Part number: 41100-YQ2B-0000-Y11
  2. Swingarm Assy (Without Painting) | Part number: 61000-YQ2A-0000
    • Swingarm Assy (Black) | Part number: 61000-YQ2A-0000-Y4
  3. Subframe Assy. | Part number: 41520-YQ2A-0000
  5. Screw (M8*20) | Part number: B1-009-08-020-F0
  6. Nut (M10*1.0) | Part number: B2-013-10-F0
  7. Swingarm pivot shaft | Part number: 61260-YQ2A-0000
  8. Washer (Φ10-Φ20-2) | Part number: B4-001-10-F2
  9. Light Bee Reinforced Riser Clamp Assy | Part number: 41115-YQ2A-Z
