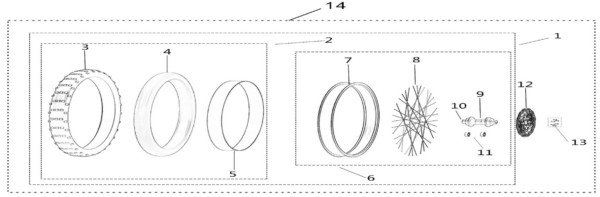

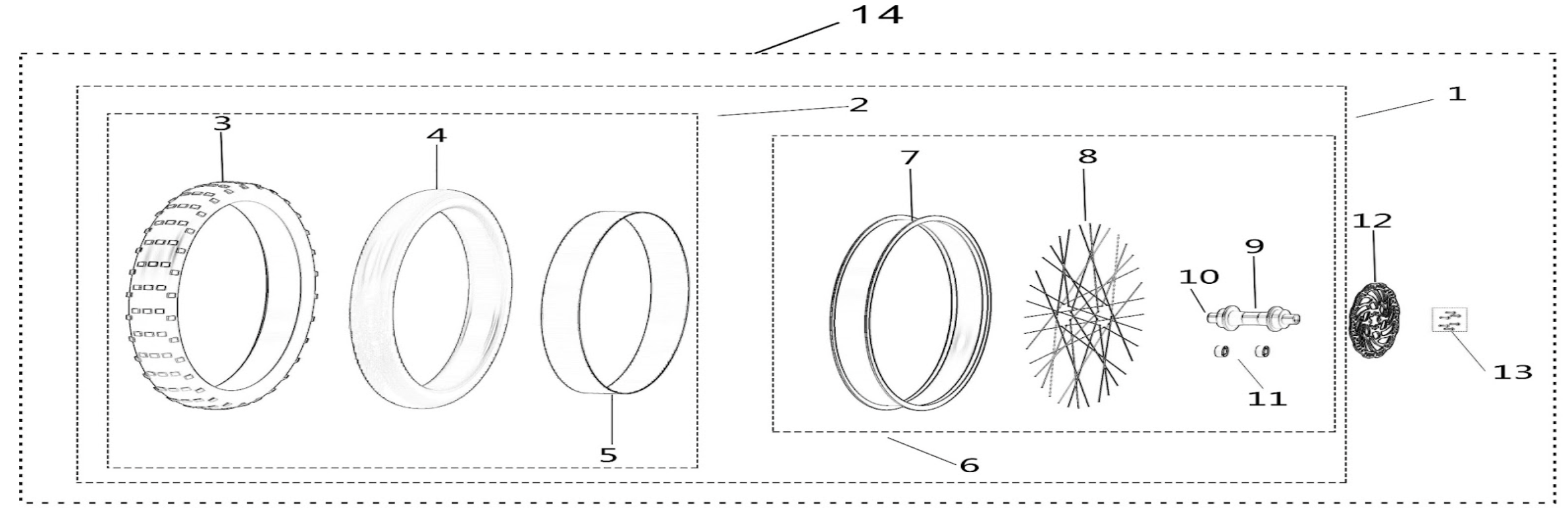

L1E Front Wheel System

Category:

  1. Front Wheel Assy. + Off Road Tire (E-Mark) | Part number: 51200-YQ2A-0200
  2. Off Road Tire Assy. (E-Mark-70/100-19-CM708) | Part number: 51230-YQ2A-0010
  3. Off Road Tire (E-Mark-70/100-19-CM708) | Part number: 51231-YQ2A-0010 All Terrain Tire (2.50-19 E-Mark) | Part number: 51231-YQ2A-0301
  4. Inner Tube(E-Mark-2.00/2.25-19) | Part number: 51232-YQ2A-0010
  5. Rim Band(19-20mm) | Part number: 51266-YQ2A-0000
  6. Front Rim Assy. | Part number: 51270-YQ2A-0000
  7. Front Rim (19*1.4-36-6.5mm) | Part number: 51271-YQ2A-0100
  8. Front Wheel Inside Spokes(216×8) | Part number: 51290-YQ2A-0100 Front Wheel Outside Spokes(216×8.2) | Part number: 51290-YQ2A-0300
  9. Front Wheel Hub Assy. | Part number: 51210-YQ2A-0000
  10. Front Wheel Bush | Part number: 51261-YQ2A-0000
  11. Front Wheel Bearing (Φ20Φ327) | Part number: Z-6804-32-20-07
  12. Front Brake Disc | Part number: 52171-YQ2A-0001
  13. Screw (M5*10) | Part number: FB03-006-05-010-F3
  14. Front Wheel Assy + Front Brake Disc(E-Mark) | Part number: 51200-YQ2B-Z
