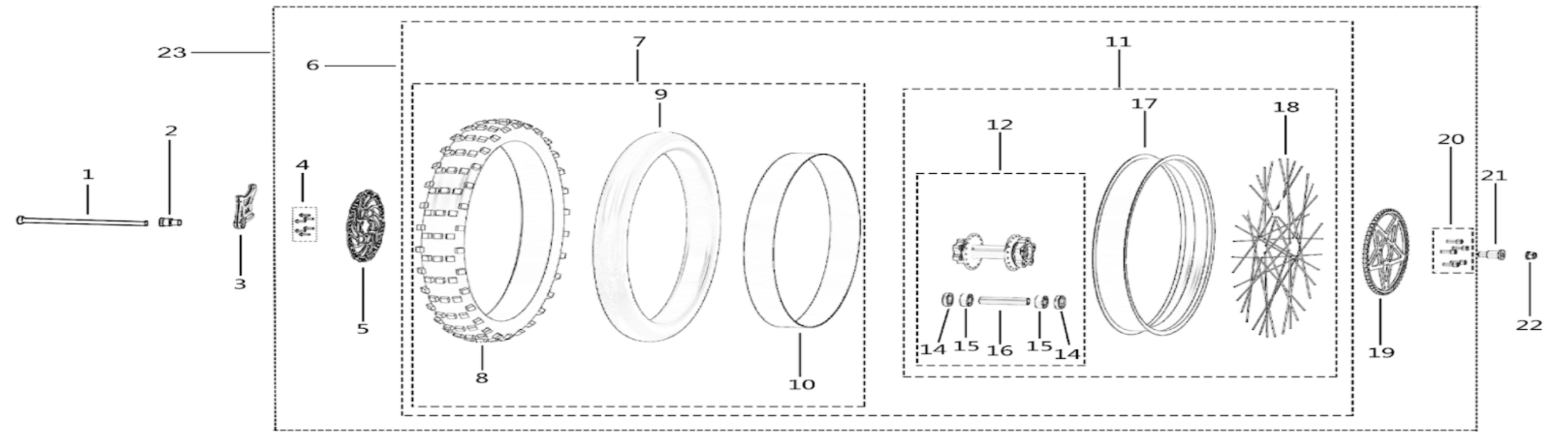

LBS Rear Wheel System

Category:

  1. LBS Rear Wheel axle | Part number: 51350-YQ2B-0000
  2. Rear Wheel Step Bushing Left | Part number: 51362-YQ2A-0000
  3. Rear Brake Clipper Bracket | Part number: 52280-YQ2A-0000
  4. Screw (M6*13) | Part number: FB03-006-06-013-F3
  5. Rear Brake Disc | Part number: 52271-YQ2A-0001
  6. Rear Wheel Assy.（E-Mark） | Part number: 51300-YQ1A-0000
    • Rear Wheel Assy. | Part number: 51300-YQ1A-0100
  7. Off Road Tire Assy.（E-Mark-17） | Part number: 51230-YQ1A-0000
    • Off Road Tire Assy(17) | Part number: 51230-YQ1A-0100
  8. Tire (E-Mark-70/100-17-CM708D-40M-TT) | Part number: 51231-YQ1A-0000
    • Tire (70/100-17-CM708D-40M-TT) | Part number: 51231-YQ1A-0100
  9. Tire Inner Tube（E-Mark-200/225-17-TR6M） | Part number: 51232-YQ1A-0000
    • Tire Inner Tube（200/225-17-TR6M） | Part number: 51232-YQ1A-0100
  10. Rear Rim Band(17-20mm*1mm) | Part number: 51266-YQ1A-0000
  11. Rear Rim Assy.（17 LBS） | Part number: 51370-YQ1N-0000
  12. Rear Wheel Hub Assy. | Part number: 51310-YQ2A-0000
  14. Rear Wheel Hub Oil Seal (Φ20-Φ37-7) | Part number: B7-001-20-37-7
  15. Rear Wheel Hub Bearing (Φ15Φ3511) | Part number: Z-6202-35-15-11
  16. Rear Wheel Hub Inner Bushing | Part number: 51363-YQ2A-0000
  17. Rear Rim | Part number: 51271-YQ1A-0000
  18. Rear Wheel Inside Spokes (185.5×8) | Part number: 51390-YQ1A-0000
    • Rear Wheel Outside Spokes(185.5×8.6) | Part number: 51390-YQ1A-0100
  19. Sprocket (58T) | Part number: 13204-YQ2A-0200
  20. Screw (M8*16) | Part number: B3-001-08-016-F0
  21. Rear Wheel Step Bushing Right | Part number: 51361-YQ2A-0000
  22. Nut (M12*1.25) | Part number: B2-007-12-F2
  23. Rear Wheel Assy + Rear Brake Disc + Sprocket | Part number: 51300-YQ1A-Z
    • Rear Wheel Assy + Rear Brake Disc + Sprocket（E-Mark） | Part number: 51300-YQ1A-Z1
